AJA T-TAP
by AJA
Availability:
14-20 days delivery
SKU
VZ-3059719

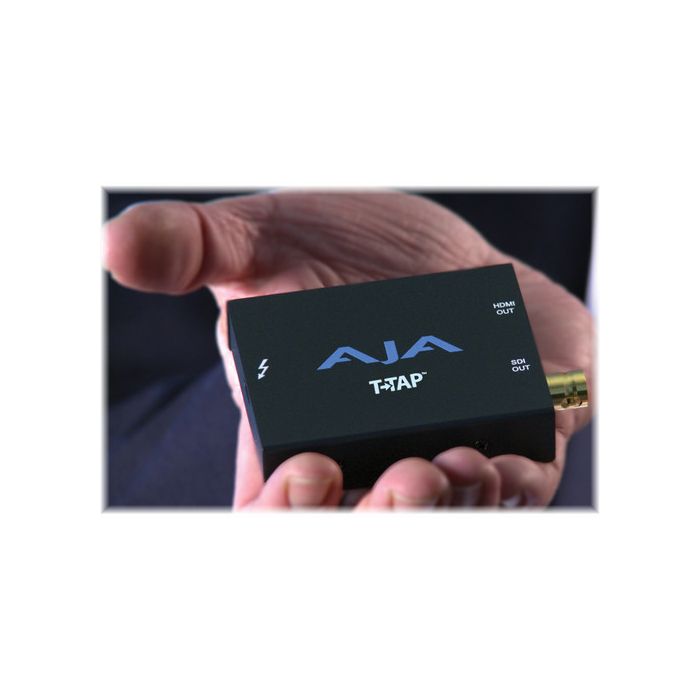

The AJA T-TAP captures 10-bit SD/HD/2K video and embedded audio from a Thunderbolt-enabled computer and outputs it in the same broadcast-quality to professional and consumer monitors and recording gear by SDI and HDMI.
€375.00
€300.00
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- AJA T-TAP
Both outputs can be used simultaneously at all times. The HDMI out can be connected directly into 3D HDMI monitors for 3D stereoscopic monitoring. Both outputs also support full 24-bit 8-channel embedded audio, allowing for multi-channel playback such as 5.1 / 7.1 mixes.
T-TAP gets its power from the Thunderbolt connection to a computer and thus doesn't require any additional power at all, further supporting the portability of this device that conveniently fits into your hand.
Broadcast Quality Output from a Computer
- Captures and outputs 10-bit SD/HD/2K video and embedded audio
- Outputs to 3D, professional and consumer monitors and recording gear
| Input | Thunderbolt x1 |
| Output | SDI x1 HDMI 1.3 x1 (compressed 3D support) |
| Supported Video Formats | 8-bit 4:2:2 and 10-bit 4:2:2 in the following formats: 525i 29.97 625i 25 720P 50,59.94,60 1080i 25, 29.97, 30 1080PsF 23.98, 24, 25, 29.97 1080p 23.98, 24, 25, 29.97 2K 1080p 23.98, 24, 25 2K 1080PsF 24, 25 |
| Audio Support | 24-bit SDI embedded audio, 8-channel, 48kHz 24-bit HDMI embedded audio, 8-channel, 48kHz |
| Dimensions | 2.28 x 2.95 x 1.18" (5.8 x 7.5 x 3 cm) |
Packaging Info
| Package Weight | 0.2 lb |
| Box Dimensions (LxWxH) | 5.4 x 4.1 x 0.8" |
