AJA C10DA
by AJA
Availability:
14-20 days delivery
SKU
VZ-3058851

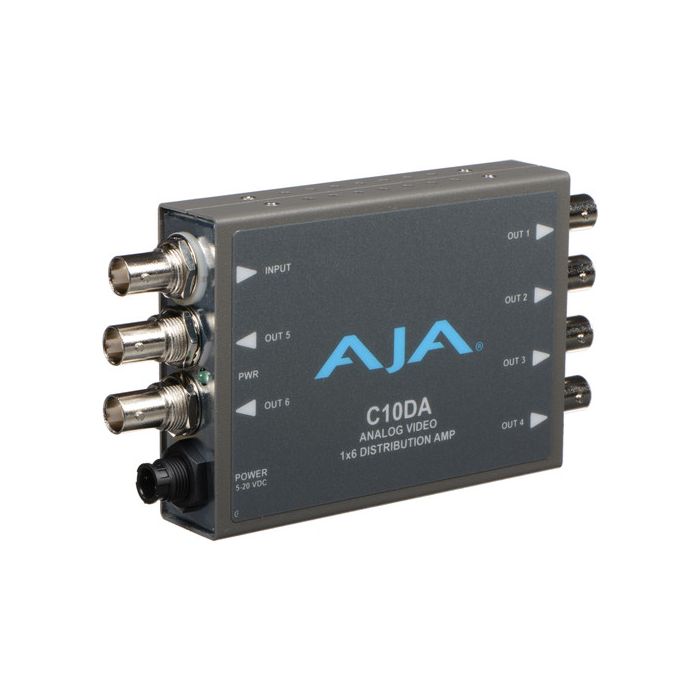

The C10DA Analog BNC 1x6 Distribution Amplifier from AJA features one analog BNC video input and six BNC outputs that support NTSC and PAL signals.
€288.75
€231.00
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- AJA C10DA Analog BNC 1x6 Distribution Amplifier
- AJA DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters
The unit supports bi-level and tri-level reference signals, and it features AES-id and LTC support. The amplifier features a DIP switch for input/output settings, signal termination, and gain. A universal power supply is included.
| Input | 1 x BNC, Analog HD/SD-SDI |
| Outputs | 6 x BNC, Analog HD/SD-SDI |
| Video Format Support | NTSC, PAL |
| Termination | 75 Ohms, Non-Terminated Option |
| Video Bandwidth | 0 to 6 MHz ±0.1 dB |
| Common Mode | 10 Vpp |
| Return Loss | >35 dB to 6 MHz |
| Output Isolation | >40 dB |
| Gain | -3 to +3 dB ±0.3 dB Diff Gain: 0.15%, Not Load Dependent Diff Phase: 0.1°, Not Load Dependent |
| Horizontal/Vertical | Tilt: < 0.1% |
| Response | <0.1 dB, 1 to 6 Loads |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -40 to 140°F / -40 to 60°C |
| Relative Humidity, Non-Condensing | 10 to 90% |
| Operating Altitude | <10,000' / 3000 m |
| Power | 5 VDC, 2 W |
| Dimensions | 5.8 x 3.1 x 1" / 14.7 x 7.9 x 2.5 cm |
| Weight | 12.8 oz / 363 g |
Packaging Info
| Package Weight | 1.665 lb |
| Box Dimensions (LxWxH) | 7.3 x 5.9 x 4.15" |
