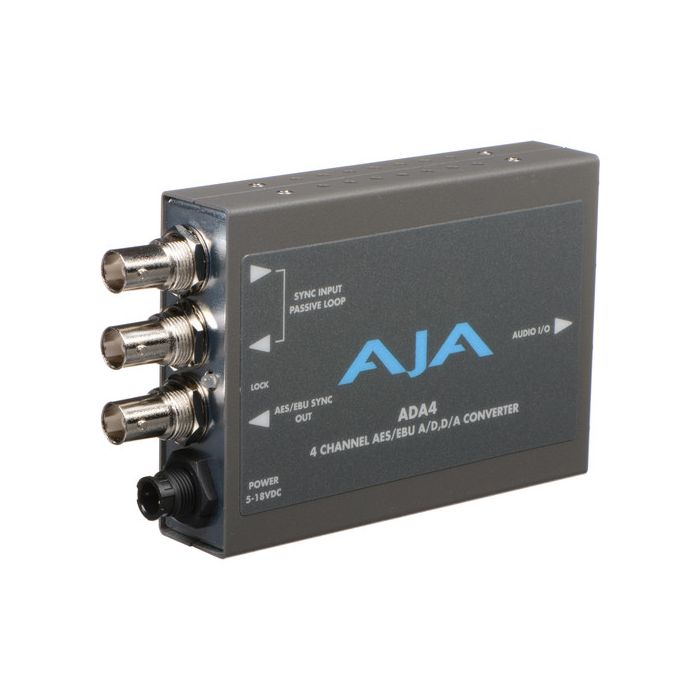

AJA ADA4
by AJAAJA's 4-Channel Bi-Directional Audio A/D & D/A Converter allows you to convert between balanced analog and AES/EBU digital audio.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- AJA 4-Channel Bi-Directional Audio A/D & D/A Converter
- AJA DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters
It can be configured as a 4-channel A/D converter, 4-channel D/A converter, 2-channel A/D and 2-channel D/A converter, or an AES sychronizer. An included XLR breakout cable provides audio connections for ADA4, allowing 8 channels of AES audio input and output while keeping the overall size of the Mini-Converter compact and portable. Audio levels are configurable via DIP switch control. The ADA4 also accepts an AES11, worldclock, or video sync/color black reference input for synchronization. Reference input and synchronization are automatic. For power, the Mini-Converter comes with a universal power supply with international plug connections for use in wall sockets around the world.
- Simultaneous A/D and D/A, or AES Synchronizer
- Full-time AES11 low jitter reference output
- Up to 4 channels of balanced analog to AES/EBU audio
- Up to 4 channels of AES/EBU to balanced analog audio
- Supplied XLR breakout cable
- AES11/Worldclock/Tri-level Sync/Color Black Reference Loop
- Adjustable Audio Levels
- Sample Rate Conversion Between 96KHz and 48KHz
- Dipswitch configuration 5-18VDC Power
| Analog Audio I/O | Balanced, XLR, one channel per XLR connector |
| AES Audio | Balanced 110 ohm, XLR, two channels per XLR connector |
| Analog | +24 dBu (SMPTE RP155), +18 dBu (EBU R68), +15 dBu (Germany), +10 dBV (consumer +12.2 dBu) |
| Audio Converters | 24 bit, 48/96 KHz |
| User Controls | (External DIP switch) Channel 1/2: A/D, D/A Channel 3/4: A/D, D/A Audio Level 1 Audio Level 2 |
| Reference | 75 ohm (un-terminated). HD/SD Sync, AES-11, or Worldclock (48/96 KHz) |
| Power | 5 to 18 VDC, 3 W |
| Dimensions | 5.8" x 3.1" x 1" (147 x 79 x 25 mm) |
| Package Weight | 2.615 lb |
| Box Dimensions (LxWxH) | 10.1 x 5.75 x 3.75" |
