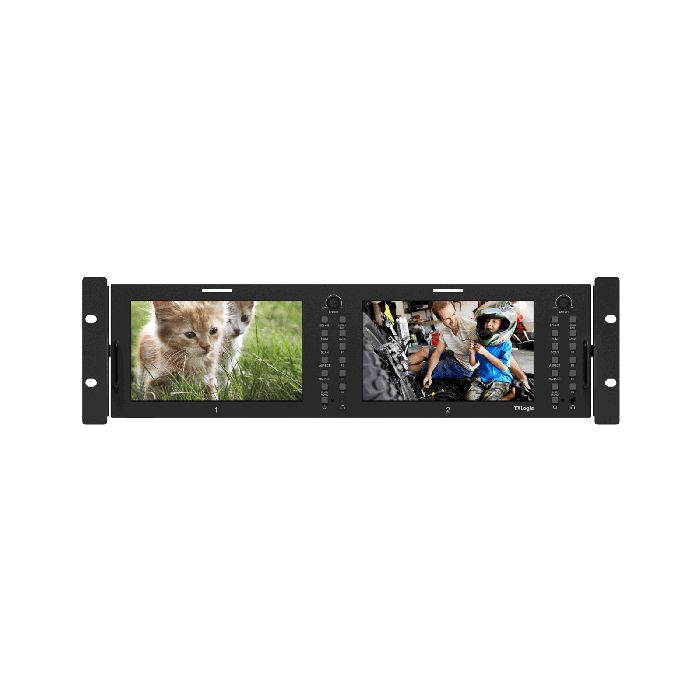

TVLogic RKM-270A 2x7'' LCD 3RU Multi-Channel

by TVLogic
Availability: 14-20 days delivery
  • 7” 1024 x 600 (16:9) Resolution
  • 1:1 Pixel Mapping Modes for SD/HD
  • 3G-SDI Level A/B
  • Audio Level Meter Display
€3,400.00/25.617,30kn €2,720.00/20.493,84kn
Conversion rate: 1 EUR = 7,53450 HRK

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.

Closed caption

Closed caption.

Blue Only / Mono

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the colour tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

Focus Assist

Assigns a colour to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, the user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the centre of the screen.

Key Lock

Locks the knob or key control.

Luma(Y') Zone Check

Displays the Luma(Y’) level of the input image in colours. Each pixel’s Y’ analyzed and changed to a certain colour or zebra pattern according to the Index on the right side of the screen.


Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line colour and curtain transparency selection. A User Marker is available if any of the standard markers fits your requirements.

Range Error

Analyzes the input signal’s Luma(Y’) and chroma information(C’) and if the input signal exceeds the designated minimum value and maximum value, the pixel shall blink. This function is to help the user to easily find out any unwanted levels of signals and for a better exposure setting.

Time Code Display

Displays the Timecode information on the screen.

User Aspect

Adjusts the Width /Height display ratio.

Various Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

Waveform/Vector Scope

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the colour components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.


Magnifies the input signal from 0% to 90%.

3G-SDI Level A/B

Supports 3G-SDI Level A/B input.


Displays user customized 8 characters or source ID or Tally signal of Ancillary (ANC) data on the screen.

Size 7"
Resolution 1024 x 600 (16 : 9)
Pixel Pitch 0.15mm
Colour Depth 16.7M
Viewing Angle (Typ.) 170°(H) / 170°(V)
Luminance (Max.) 400cd/m2 (centre)
Contrast Ratio 800:01:00
1 x HDMI HDMI Input
2 x BNC SDI A/B Channel Input
1 x BNC SDI Selected Channel Output
Analogue CVBS
3G-SDI 2.970Gbps
HD-SDI 1.485Gbps
SD-SDI 270Mbps
HDMI 1080P(24/25/30/50/60) /1080i(50/60) / 720p(50/60) /480i(60) / 480p(60) / 576i(50) /576p(50)
SMPTE-425M-A/B 1080i(60/59.94/50)
SMPTE-274M 1080i (60 / 59.94 / 50)
1080P (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M 720p(60/59.94/50)
SMPTE-260M 1035i(60/59.94)
SMPTE-125M 480i(59.94)
ITU-R BT.656 576i(50)
2K Format -
Audio IN Embedded Audio / Analogue stereo (Phone Jack)
Audio OUT Analogue stereo (Phone Jack) / Internal Speaker (Mixed Mono)
Power DC 12/24V
Operating Temperature 0°C to 35°C (32°F to 95°F )
Storage Temperature -20°C to 60°C (-4°F to 140°F )
Dimensions 480.8 x 132 x 50.5 (mm) / 18.92 x 5.19 x 1.98 (inch)
Weight 4kg (8.81lb)
