Neumann KK 184 NX

by Neumann
Availability: 7-10 days delivery
SKU
SEN-008569

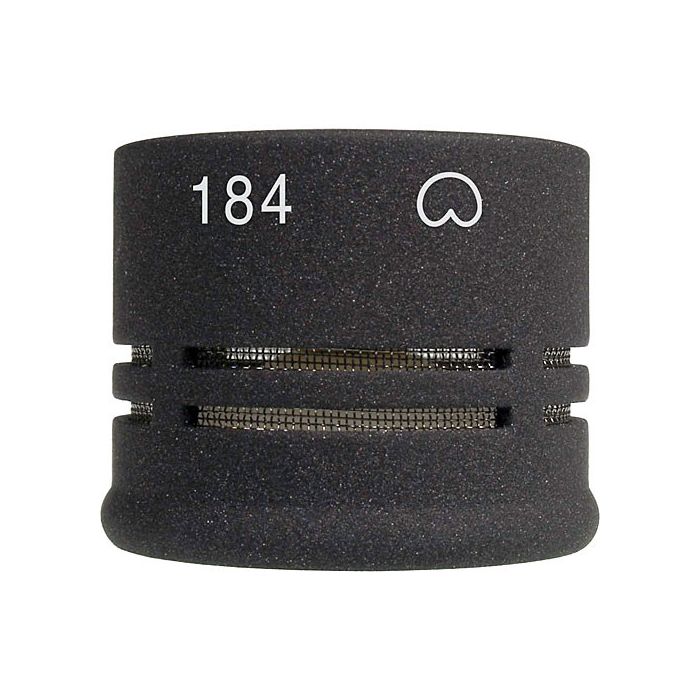

Neumann KK184 - Cardioid Capsule for KM Series Digital Microphone (Black)

€648.75 €519.00

Package includes

  • 1 x Neumann KK 184 nx

The Neumann KK184 is the cardioid capsule for the KM series digital microphone. The cardioid polar pattern is effective in minimizing off-axis noise and feedback that may occur. The KK184 is user installable and features a non-reflective finish.


Cardioid Polar Pattern

User installableNon-reflective finish
Transducer Pressure Condenser
Polar Pattern Cardioid
Frequency Response 20 Hz - 20 kHz
Dynamic Range (Typical) 124 dB
Signal-to-Noise Ratio Signal-to-noise ratio, A-weighted: 81dB, 81dB, 79dBaccording to IEC 60268-1; CCIR-weighting according to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
Maximum Input Sound Level 137 dB @ 0 dBFS
Power Requirements Power supply (phantom power complying with AES 42) Supply voltage range: +7V to +10.5V
Output Impedance 50 Ohms
Output Connectors Not Applicable
Pad None
Low Frequency Roll-Off None
Dimensions Not Applicable
Weight Not Applicable
