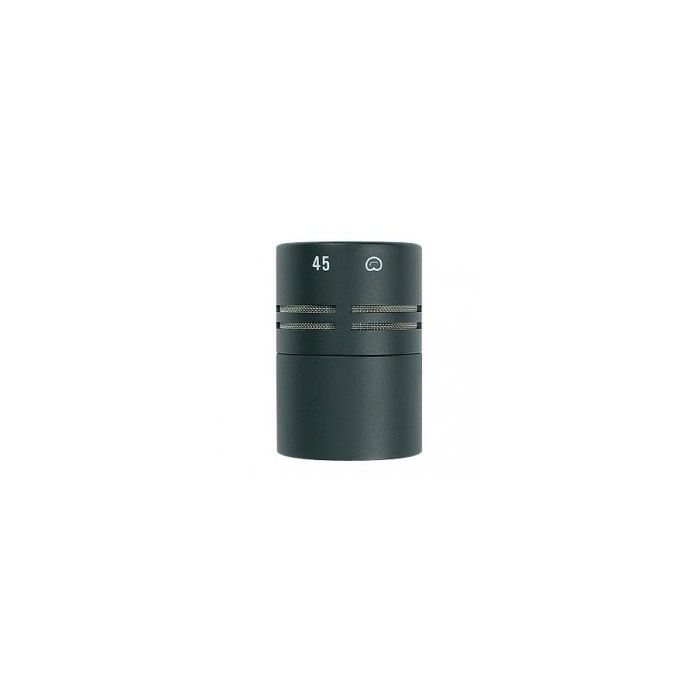

Neumann AK 45

by Neumann
Availability: 7-10 days delivery

The AK 45 microphone element features a pressure gradient, single diaphragm transducer with a cardioid polar pattern.

€856.25 €685.00

Package includes

  • 1 x Neumann AK 45

AK... active capsules are part of the variable miniature microphone system. Together with the KM 100 output stage AK... active capsules form a complete microphone. AK 30 and KM 100, for example, make up the KM 130.

AK 45 is a pressure gradient transducer with cardioid characteristic just like the AK 40. However, it has an acoustic bass roll-off characteristic in the free field and therefore suppresses interfering LF noise (wind, structure-borne noise).

Since proximity effect is a natural feature of pressure gradient microphones, the AK 45 appears to be optimized for a flat frequency response at a recording distance of approximately 15 cm (speech cardioid).
