Dynacore DS-2S V-lock Charger
by Dynacore- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes

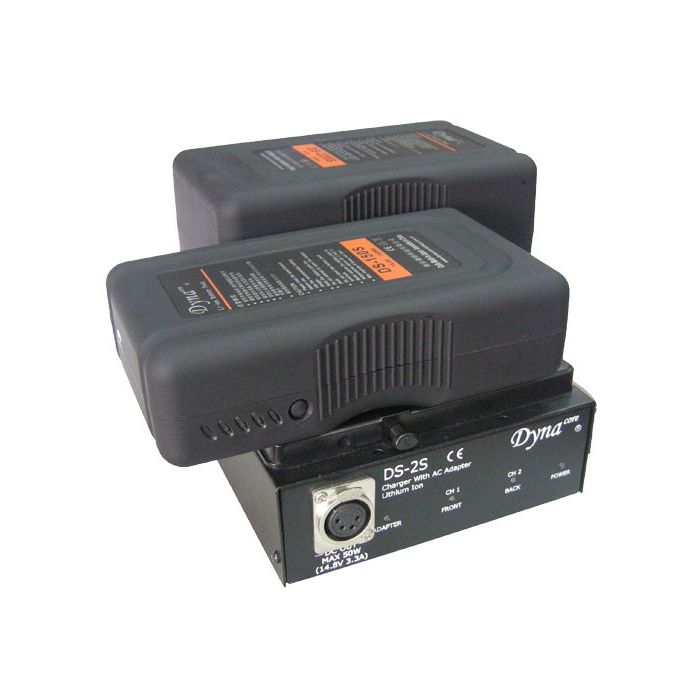

- Dynacore DS-2S V-lock Charger
Function and Feature:
1. 3 channels of CH1、CH2 and DC OUT can work simultaneously.
2.The working status of 3 channles is shown clearly by indicators seperately.
a. The adaptor DC OUT indicator shows red when it woks.
b. For charger CH1 and CH2, the indicators will show red when the capacity of the battery is between 0-85%,and organge between 85%-95%, when the battery is fully charged, the indicator will turn green.
3.Inhabit IC protection system to prevent over current, over voltage (the max volatge is 16.8V) and short circuit.
4. With 0V activation function, when the charger is with empty load, there is pulse signal on CH1 and CH2 to detect battery, in case of the problem that the battery can’t be charged after protection.
1. Input Voltage：AC 100-240V
2. Output: ≤120W in total
a. CH1 output：16.8V×2A≤34W；CH2 output: 16.8V×2A≤34W；
b. DC Output：14.8V×3.3A≤50W.
3. Size：215*85*155（mm）
4. Weight：1.3Kg
