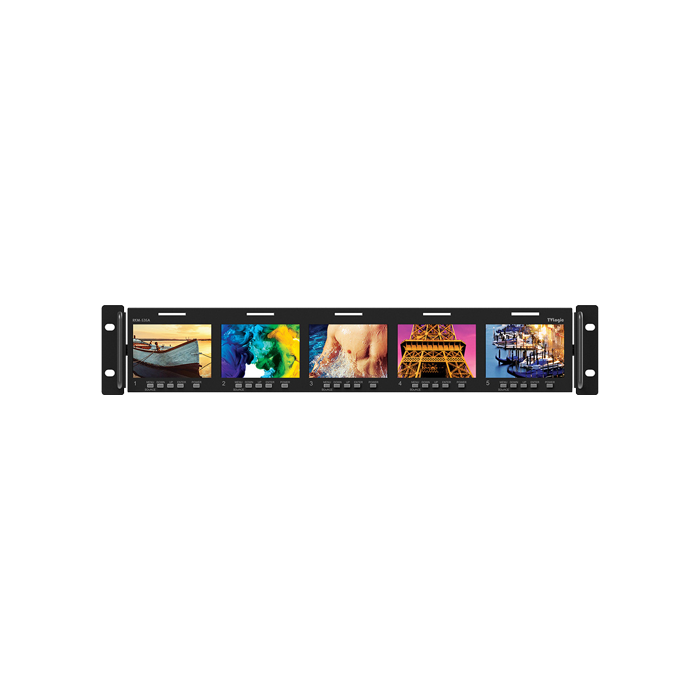

TVLogic RKM-535A 5 x 3.5'' LCD Multi-Channel Rack Monitor

by TVLogic
Availability: 14-20 days delivery
SKU
TVL-RKM-535A
  • 5 x 3.5” LCD Screens
  • 960×640 Resolution (3:2)
  • High Contrast Ratio of 1000:1
€4,818.00 €3,854.40

Package includes

  • 1x 3.5 Inch x 5 Rack Mount Monitor

The RMK-535A is 2RU rack-mount monitor with five high resolution (960 x 640) 8 bit LCDs offering unprecedented image quality in a compact rackmount system. Features include Focus Assist, Various Scan Modes, Markers, Audio Level Metering, Timecode Display, Closed Captioning, Waveform/Vectorscope, and more

Display Specs:
Size 3.54”
Resolution 940 x 640 (3:2)
Pixel Pitch 0.078mm
Colour Depth 16.7M
Viewing Angle(Typ.) 160°(H) / 160°(V)
Luminance (Max.) 500cd/m2 (center)
Contrast Ratio 1000:01:00
Display Area 75(H)X50(V)mm
Input:
1 x BNC SDI Channel Input
1 x BNC Analog Video Input
Output:
1x BNC SDI Channel Output
Input Signal:
Analog CVBS
3G-SDI 2.970Gb/s
HD-SDI 1.485Gb/s
SD-SDI 270Mb/s
Analog Input Spec:
CVBS 1.0Vp-p (With Sync) NTSC. PAL
SDI Input Signal Formats:
SMPTE-425M-A/B 1080p(23.98/24/25/30/29.97/25/24/2
3.98/30sF/29.97sF/25sF/24sF/23.98sF),
1080i(60/59.94/50)
SMPTE-274M 1080p(30/29.97/25/24/24sF/23.98/23.98sF)
/ 1080i (60/59.94/50)
SMPTE-296M 720p (60/59.94/50)
SMPTE-260M 1035i (60/59.94)
SMPTE-125M 480i (59.94)
ITU-R BT.656 576i (50)
Power DC 12V
Operating
Temperature 0°C to 45°C (32°F to 113°F )
Storage Temperature -20°C to 60°C (-4°F to 140°F )
Dimensions:
Main Body 480.8 x 87.7 x 118.7 (mm) / 18.93 x 3.45 x 4.67 (inch)
