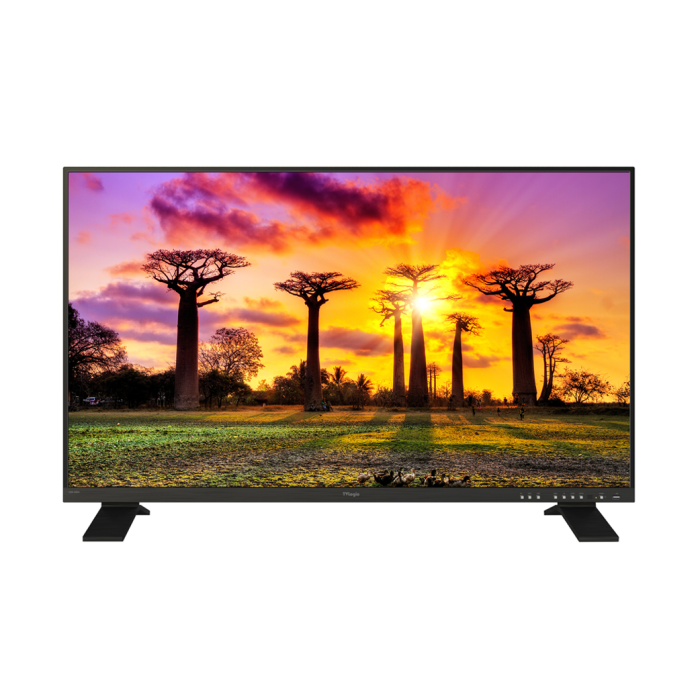

TVLogic LUM-550M 55'' True UHD 4K Monitor

by TVLogic

Raspoloživost: Isporuka 14-20 dana

SKU

TVL-LUM-550M

55”, True UHD Resolution (3840×2160)
3G-SDI Throughout
High Contrast Ratio of 1100:1

7.217,00 €/54.376,49kn 5.773,60 €/43.501,19kn

Tečaj konverzije: 1 EUR = 7,53450 HRK

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

1x 55" 4K Monitor

Opis

The 55" UHD 12G-SDI LCD Monitor from TVLogic offers viewing angles of 178°/ 178° and brightness rating of 500 cd/m2. This unit features 10-bit video processing and has a native resolution of 3840 x 2160. The contrast ratio of 1100:1 features the monitor's ability to handle light and dark images on-screen. The panel has a 5 ms response time to combat image blur and distortion on moving image

55”, True UHD Resolution (3840×2160)
3G-SDI Throughout
High Contrast Ratio of 1100:1
1.07 Billion Colours (10bit)
Wide Viewing Angle
4K / UHD Interface - 2×12G-SDI (Single Link) or 4×3G-SDI in (Quad Link) - 1×HDMI 2.0 in (New) - 1×12G-SDI out
1:1 Pixel Mapping
Audio Level Metre
Marker
Time Code Display
IR Remote Control
Ultra Slim Bezel
3G-SDI Level A/B
HDMI to SDI Conversion
Network Control by Observer (Free PC Software)
TVLogic Colour Calibration Utility
Auto Calibration
Firmware Upgrade via USB flash drives

Specifikacije

Display Spec:
Size	55"
Resolution	3840 X 2160 (16 : 9)
Pixe Pitch	0.315mm
Colour Depth	1.07B
Viewing Angle	178 deg(H) / 178 deg(V)
Luminance	500cd/m2
Contrast Ratio	1,100 : 1
Display Area	1384(H) x 680(V) mm

Input	4 X BNC 12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input
	1 X HDMI HDMI Input (HDMI 2.0)

Output	1 X BNC 12G SDI Output 1Ch (All Input Format Converted to 12G-SDI)

Audio:
Audio In	Embedded Audio/Analog Stereo (Phone Jack)
Audio Out	Analog Stereo (Phone Jack), Internal Speaker(Mono)

FPGA Functions	1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Marker, Time Code Display

Calibration	TVLogic Colour Calibration Utility

Other Functions:
Remote	TVLogic’s specification
USB	AUTO Calibration
	Firmware update by USB cable
	Firmware update by USB memory stick
Ethernet	Ethernet Control support
Conversion	SDI-to-SDI,
