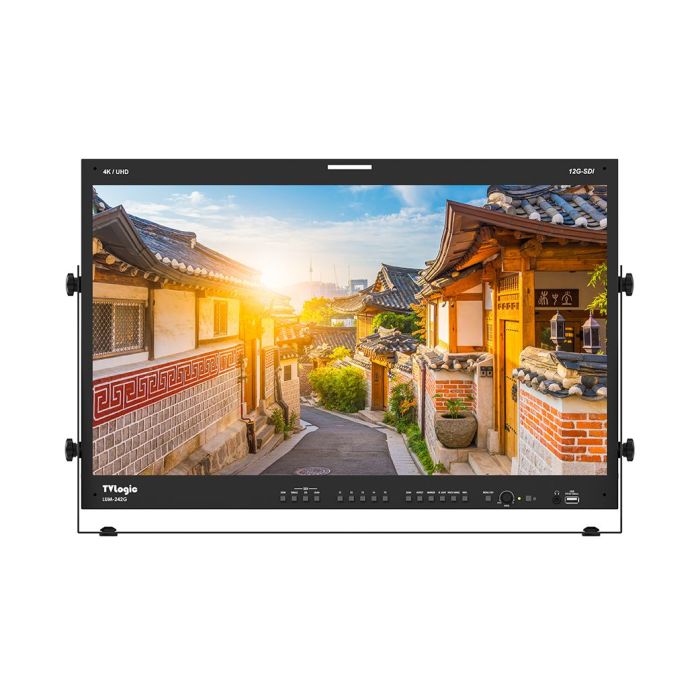

TVLogic LUM-242G 24'' DCI-UHD Monitor
by TVLogic- The LUM-242G is a 24 inch UHD resolution (3840 x 2160) monitor with maximum luminance of 500nit, contrast ratio of 1,200:1, wide color gamut and wide viewing angle
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- TVLogic 24" UHD 4K HDR Emulation Monitor
- AC Power Cord
- Desktop Stand
- USB Port Cover
A true HDR monitor must employ a special display panel with high dynamic range and a wide color gamut, along with being calibrated for PQ and HLG. For example, the LUM-310X (dual layer LCD system) and LUM-310R (LCD with local dimming backlight system) are capable of reproducing a peak luminance of 1,000 nit and 2,000 nit respectively, and a contrast ratio of 1,000,000 : 1; in addition, they cover 99% of the DCI color gamut.
Other monitor utilizing displays with normal luminace range from 0.1nit up to 400nit or high luminance monitor with up to 2000nit with variable black level (0.1 ~ 1.5nit) is defined as 'HDR Emulation monitor' in TVLogic although they have HDR EOTF and related functions. Below is a simple example for your reference.
* True HDR Monitor : HDR Display (~1000nit, 1M CR, DCI gamut) + HDR EOTF & other related function
* HDR Emulation Monitor : Normal Display (~400nit, 1000:1, BT.709 gamut) + HDR EOTF & other related function
And in TVLogic monitors, HDR Emulation function includes the control parameters below;
* Standard Color Mode (HLG, PQ, PQ2)
* Video Range
* Display Luminance *
* HDR EOTF (PQ, HLG) or Camera Logs** (coming soon)
* PQ EETF (On / Off)
* HLG System Gamma (Fixed 1.2 / Auto)
* Color Gamut (BT.709, DCI-P3, BT.2020 and Native mode)
* White Point (D65, D93, DCI)
* Gamut Warning
* Shadow Mode *** (LUM-318G only)
1:1 PIXEL MAPPING MODES FOR SD/HD
Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
WAVEFORM/VECTOR SCOPE
Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
Specs | |
Display Spec. | |
Size | 24" |
Resolution | 3840 x 2160 (16:9) |
Pixel Pitch | 0.137mm |
Color Depth | 1.07B |
Viewing Angle | 178°(H) / 178°(V) |
Luminance | 500cd/m2 |
Contrast Ratio | 1,200:1 |
Display Area | 526(H) X 296(V) mm |
Input | |
4 X BNC | 12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input |
1 X HDMI | HDMI Input |
Output | |
4 X BNC | 12G-SDI A/B,3G-SDI C/D Channel (Loop Through Out) |
Input Signal | |
3G SDI | 2.970Gbps |
12G SDI | 11.880Gbps |
HD SDI | 1.485Gbps |
SD SDI | 270Mb/s |
HDMI | 480i/480p/576i/576p/720p/1080i/1080p/2160p |
SDI Input Signal Formats | |
SMPTE 425M-A/B | 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/54) |
SMPTE 296 | 720p (60/59.94/54) |
SMPTE 274 | 1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.102sF) |
SMPTE 260 | 47.95/48/50/59.94/60p) |
Audio | |
Audio In | Embedded Audio/Analog Stereo (Phone Jack) |
Audio Out | Analog Stereo (Phone Jack), Internal Speaker(Mono) |
FPGA Functions | |
, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Luma(Y') Zone Check, Marker, Max Brightness On/Off, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, SingleMode | |
Closed Caption | |
CC-608 ANC, CC-608 LINE 21, CC-708 | |
Calibration | |
TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import | |
Other Functions | |
REMOTE | GPI (RJ45) |
REMOTE | TVLogic’s specification |
USB | Firmware update by USB memory stick |
Ethernet | Ethernet Control support |
Options | |
Stand, Carrying Case, ND Acrylic Filter, Rack Mount Kit(Single), V-Mount | |
Dimensions | |
Main Body | 552 x 360 x 98.5(mm) / 21.73 x 14.17 x 3.88(inch) |
With Stand | 586 x 388 x 150 (mm) / 23.07 x 15.27 x 5.9(inch) |
Weight | 10.3kg/22.71lbs |
