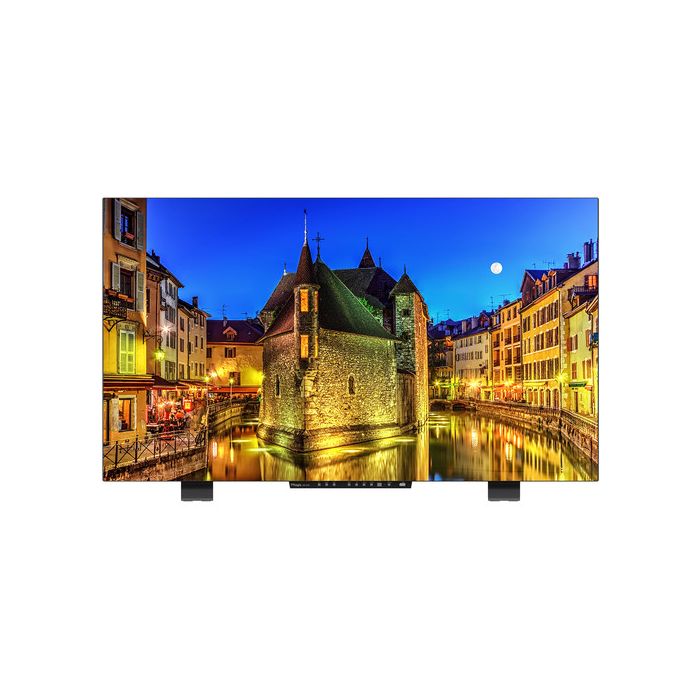

TVLogic LEM-550R 55'' 4K (3,840 x 2,160) OLED Monitor

by TVLogic
Raspoloživost: Isporuka 14-20 dana
  • For Broadcast & Post Production
  • 3840 x 2160 UHD Resolution OLED Pannel
  • 750 cd/m² Brightness
  • 140,000:1 Contrast Ratio
16.501,00 €/124.326,78kn 13.200,80 €/99.461,43kn
Tečaj konverzije: 1 EUR = 7,53450 HRK

Sadržaj pakiranja

  • TVLogic 55" UHD 4K OLED Monitor with HDR Support
  • AC Power Cord
  • Stand

The 55" UHD 4K OLED Monitor from TVLogic supports HDR standards such as SMPTE 2084PQ and HLG. It supports video at resolutions up to 3840 x 2160. The OLED monitor features a brightness of 750 cd/m2, a contrast ratio of 140,000:1, and 179° viewing angles. There are 12G/3G-SDI and HDMI ports for connectivity. Firmware can be updated via a USB memory stick (available separately). An AC power cord and stand are included.

  • Supports HDR standards such as SMPTE 2084PQ and Hybrid-Log Gamma (HLG)
  • Audio Level Meter displays the level of the embedded sound signal together with the video signal input through the SDI or HDMI terminals
  • Blue Only / Mono channel (instead of red and green channels) adjusts the color tones (tones and saturation) of the screen using the SMPTE Color Bar
  • H/V delay allows you to check the blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen
  • Marker displays various kinds of aspect ratios on the screen
  • Time Code Display displays the Timecode information on the screen
  • Waveform Y displays the Luma (Y'), Cb, Cr component of the input signal into waveform
  • Vector Scope displays the color components 'B-Y' and 'R-Y' of the input signals onto the X-Y axis
  • 1:1 Pixel Mapping Modes for SD/HD displays the original image resolution without scaling to match a certain resolution or an aspect ratio
  • 3G-SDI Level A/B supports 3G-SDI Level A/B input
  • Wide color gamut for accurate color reproduction
TVLogic LEM-550R Specs
Panel Type OLED
Display Size 54.6" / 138.7 cm
Aspect Ratio 16:09
Viewing Angle Horizontal: 179°
Vertical: 179°
Touchscreen No
Maximum Brightness 750 cd/m2
Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
Pixels Per Inch (ppi) 81 ppi
Real-Time LUT Monitoring HDR
Image Controls Blue Only, H/V Delay, Pixel Value Checker, Screen Markers, Vectorscope, Waveform
Video 4 x BNC (12G-SDI/3G-SDI) Input
1 x HDMI Type A (HDMI 2.0) Input
1 x BNC (12G-SDI/3G-SDI/HD-SDI/SD-SDI) Output
HDCP Support Yes, Version 2.0
Embedded Audio SDI: 4-Channel
Audio 1 x 1/8" / 3.5 mm Output
Built-In Speaker None
Other I/O 1 x USB 2.0 (USB Type-A)
1 x RS-232 (RJ45)
2 x RS-422 (RJ45)
Card Slot None
Format Support
Video Format SDI
Gamma Curve HDR-HLG
Battery Type None
Operating Current 0.55 A
0.28 A
Dimensions 48.4 x 27.8 x 3" / 1230 x 705.1 x 76.7 mm, Including
48.4 x 29.6 x 12.2" / 1230 x 751.6 x 309.4 mm, Including Stand
Weight 66.14 lb / 30 kg, Including
