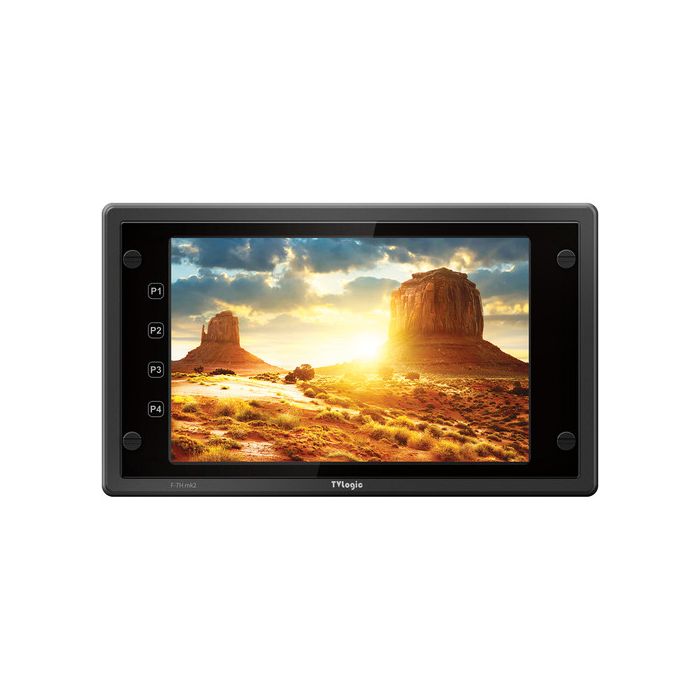

TVLogic F-7H mk2 7'' LCD Field Monitor

by TVLogic
Raspoloživost: Isporuka 14-20 dana
  • 7", 1920 x 1080, 3G-SDI and HDMI Monitor
  • Updated Image Processing Engine
  • Sharper Image, Preset Touch Buttons
2.551,75 €/19.226,16kn 2.041,40 €/15.380,93kn
Tečaj konverzije: 1 EUR = 7,53450 HRK

Sadržaj pakiranja

  • TVLogic 7" F-7H MK2 FHD HDR Field Monitor
  • TVLogic D-Tap to Mini-XLR Power Coiled Cable for VFM Monitors (Expands to 29")
  • TVLogic Threaded Camera Mount for VFM-056WP and VFM-058W Monitors
  • BNC Connector

The 7" F-7H MK2 FHD HDR Field Monitor is well suited for work in the field, on a camera, or in a studio. The IPS panel features a 1920 x 1080 resolution with 160° viewing angle. The MK2 model features an updated image processor that provides a sharper image, new touch preset buttons on the front of the monitor, and added automatic H/V flip functionality.

The F-7H MK2 supports 3G-SDI as well as HDMI 1.3, and it can cross-convert between SDI and HDMI. The 3600 cd/m² brightness and 1200:1 contrast ratio provide a bright clear image viewable in daylight without a hood. The screen supports REC 709, but can also display HDR imagery supporting HLG, PQ, and SLOG3. It features a top-mounted menu, assignable functions buttons, and a selection knob, leaving the front of the screen uncluttered.

The built-in on-screen menu display allows you to select and adjust the monitor's controls and on-screen markers, load and save 3D LUTs, and select from SDR to HDR. It displays the tally signal through the power connection and displays tally on both the front and rear of the monitor. Threaded 1/4"-20 mounting holes are built into the top, bottom, left, and right sides, allowing you to mount it using an optional accessory arm, or to your camera using the included cold shoe mounting adapter. Optionally available battery plates expand the power options of the monitor.

  • Audio level meter display
  • Blue-only/mono
  • Focus Assist
  • H/V delay
  • Auto H/V flip
  • Waveform and vectorscope
  • Key lock
  • Luma(Y') zone check
  • Marker
  • Max brightness on/off
  • Range Error
  • Timecode display
  • 1-to-1 pixel zoom
  • ARRI camera metadata support
  • Anamorphic de-squeeze
  • HDMI to SDI conversion
  • SDI to HDMI conversion
  • Internal pattern generator (0~100% gray/color bars + pluge)
  • Center marker, safety area marker, marker mat, marker size, fit marker, thickness adjustment function

3D LUT Support
The monitor internally stores up to three 3DLUTs. You can also load from a list of available 3DLUT files. The monitor supports the following formats: Cube, GV Lut, Quantel, DaVinci, and AssScratch. Once saved, the 3DLUT is retained even when the power is turned off.

The F-7H MK2 supports HDR display using EOTF in PQ, HLG, or SLOG3. In the Auto mode, the HDR image is converted within the range of set peak luminance and black level. In the Off mode, the video will clip.

Available Marker types are Off, 16:9, 4:3, 4:3, On Air, 15:9, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1, 4:3, and user-definable top/bottom and left/right.

Aspect Ratio
You can adjust the aspect ratio of the monitor, regardless of the original aspect ratio of the input signal. Aspect modes are changed as follow: 16:9, 4:3, 2.35:1, 1.85:1, 15:9, 16:10], Anamorphic 1.3x, Anamorphic 1.5x, Anamorphic 2.0x, and Auto. Auto mode enables the aspect ratio of the output signal to be synchronized to the original aspect ratio of the input signal.

The F-7H MK2 supports on-screen and rear tally. Tally signals are sent through the 3-pin connector.

On-Screen Display
You can select the type, then adjust the size and transparency of the waveform and vectorscope.

Optional Battery Plates

  • Optional battery plates are available to power your monitor from:
  • L-series
  • Cannon BP series
  • Panasonic CGA/VB series
  • Sony BP-U series
  • LP-E6
  • V-mount
  • Gold mount
TVLogic F-7H Specs
Panel Type IPS-Type LCD
Display Size 7.0" / 17.8 cm
Aspect Ratio 16:09
Viewing Angle Horizontal: 160°
Vertical: 160°
Touchscreen No
Maximum Brightness 3600 cd/m2
Contrast Ratio 1200:01:00
Dot Pitch 0.078 x 0.078 mm
Bit Depth / Color Support 8-Bit (16.7 Million Colors)
Pixels Per Inch (ppi) 314 ppi
Real-Time LUT Monitoring SDR
Image Controls Anamorphic De-Squeeze, Blue Only, Color Temperature Selection, H/V Delay, Image Flip, Scaling, Vectorscope, Waveform
Video 1 x BNC (3G-SDI) Input
1 x BNC (3G-SDI) Output
1 x HDMI Type A (HDMI 1.3) Input
1 x HDMI Type A (HDMI 1.3) Output
Embedded Audio SDI
Audio 1 x 1/8" / 3.5 mm Line Input
1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker 1
Other I/O 1 x Tally (Proprietary)
Card Slot None
Format Support
Video Format SDI (10-Bit 4:2:2 YCC)
1080p: 60/59.94/50
1080PsF: 30/29.97/25/24
1080i: 60/59.94/50
720p: 60/59.94/50
576i: 50
480i: 59.94
SDI (10/12-Bit 4:4:4 RGB, YCC)
1080p: 30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
HDMI (8/10/12-Bit 4:4:4 RGB, YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60
480i: 60
HDMI (8/10/12-Bit 4:2:2)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60
480i: 60
PC Resolutions 1920 x 1080 at 60 Hz
1280 x 1024 at 60 Hz
1280 x 800 at 60 Hz
1280 x 768 at 60 Hz
1024 x 768 at 60/70/75 Hz
800 x 600 at 60/75 Hz
640 x 480 at 60/75 Hz
640 x 400 at 70 Hz
Video Signal Conversion SDI to HDMI
Battery Type None
Power Consumption 19 W
Mounting 8 x 1/4"-20 Female
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Dimensions 8.3 x 4.9 x 1.1" / 211 x 125 x 28.3 mm
Weight 1.76 lb / 0.8 kg
Warranty Length Limited 1-Year Warranty
Packaging Info
Package Weight 2.355 lb
Box Dimensions (LxWxH) 11.6 x 6.4 x 3.4"
