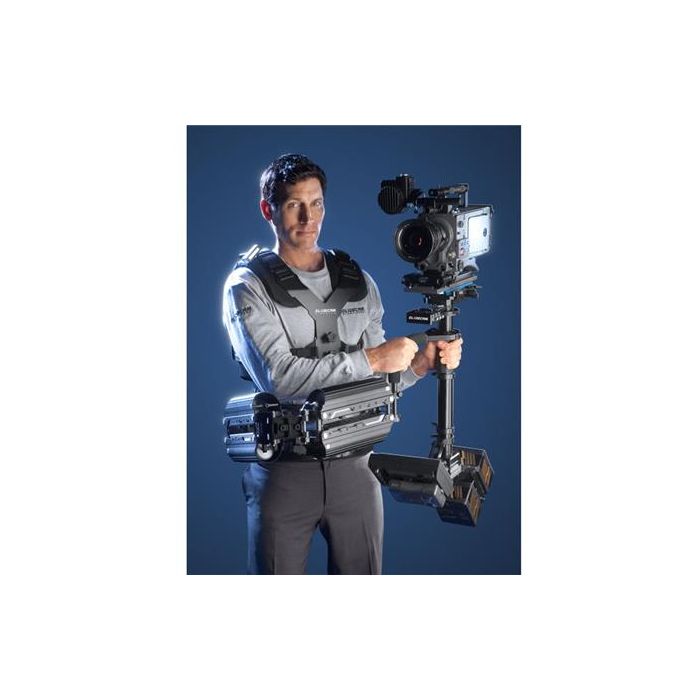

Glidecam X-45 System W/ Anton V-Lock Base
by GlidecamIncludes V-Mount Battery Plate, X-45 Support Arm, Support Vest, X-45 Support Sled, Docking Bracket, Arm Post
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Glidecam X-45 Support Arm
- Support Vest
- X-45 Support Sled
- Docking Bracket
- Arm Post
- Hardware and Operations Manual
- X-45 V-Mount Battery Plate
Glidecam x-45 Sled
The Glidecam x-45 Sled is designed to hold film and video cameras weighing from 25 to 45 pounds. The x-45 Sled incorporates sophisticated engineering and precision machining, making it both lightweight and strong. The Glidecam x-45 Sled is comprised of four major components. These are the Camera Balance Platform, the Three-Axis Gimbal, the Dynamic Base Platform and the Telescoping Center Post.
Camera Balance Platform
The precision, Camera Balance Platform (x-Y Head or Top Stage) incorporates a quick-release, no-tools, drop-in Dovetail Camera Plate that allows you to quickly attach or remove your camera. Ergonomic, fine-tuning, control knobs allow quick and precise adjustment of the Camera Balance Platform's front-to-back and side-to-side movement. These controls allow you to quickly adjust the system's horizontal balance.
Three-Axis Gimbal
A unique and proprietary, precision, no-tools Three-Axis Gimbal incorporates several adjustable, axis convergence controls. This allows all three axes to intersect for proper operational alignment. By changing the location of the Gimbal on the Central Post, you can quickly adjust the system's vertical balance. For improved operator control, a very tight knurling has been machined onto the Gimbal Tube.
Dynamic Base Platform
The unique and proprietary, Dynamic Base Platform is designed to manually expand or contract. This allows you to easily adjust the system's dynamic balance or to increase or decrease the system's rotational pan inertia. The x-45's Dynamic Base Platform can be set up with up to 3 Anton Bauer Batteries or up to 3 V-Mount style Batteries. The Glidecam x-45 sled also includes a Glidecam 7" HD Monitor, a custom LCD Battery Plate and a BNC-to-BNC/RCA video cable.
Telescoping Center Post
The Glidecam x-45 Sled has a lightweight and rigid, no-tools, 1.75" diameter, Telescoping Center Post. This allows you to easily adjust the sled's length and the position of the LCD Monitor and Battery.
Construction Aluminum
Tube Diameter1.75" / 44.45mm
Maximum Load Capacity 45lbs / 20.41kg
Battery Plate V Mount
